当前位置:产品中心 > LED投光灯系列
LED防爆平台灯-001
作者: admin 发布日期: 2013-4-20 10:29:14

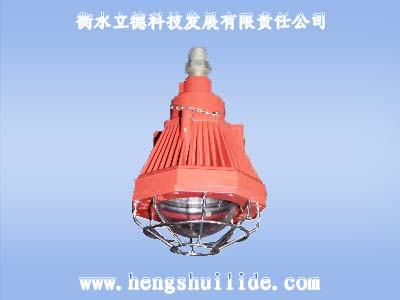

LED防爆平台灯
LED platform lamp


适用范围:
LED防爆平台灯主要适用范围:LED防爆平台灯适用于钻井平台、海上石油平台、炼油厂、化工厂、油站油库、隧道、船舶等易燃易爆场所及造船等行业使用:
Scope  of  application
LED platform lamp main applicable range: LED platform lamp suitable for drilling platform, offshore oil platform, oil refineries, chemical plants, oil depot, tunnel, ships and other inflammable and explosive places and shipbuilding industries:

基本技术参数 :Specification

型号规格
Model specification

额定电压
Rated voltage(V)

功率
Power(W)

防爆标志
Explosion proof marks

防腐等级
Anticorrosion grade

防护等级
Protection grade

进线电缆外径
The cable outer diameter

出线口螺纹
Outlet thread

LDRG160

AC85-265V

18W

ExdII CT6

WF2

IP66

Φ8-Φ15

G3/4

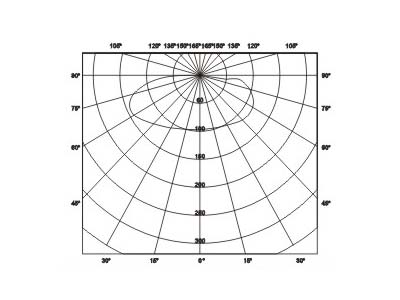

配光曲线:Light distribution curve:

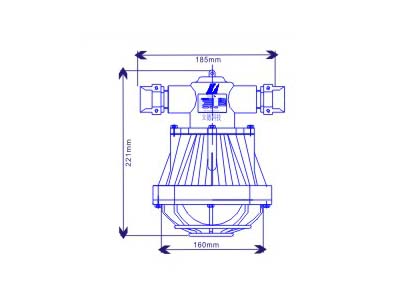

安装尺寸 Mounting dimensions

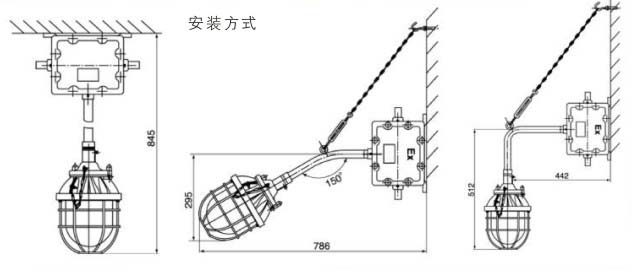

安装方法:Installation methods:



上一个产品: LED防爆平台灯
下一个产品: LED防爆平台灯-002
