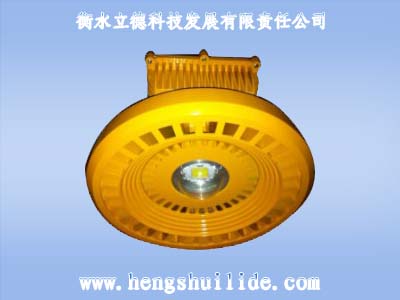

LED防爆平台灯
LED platform lamp
适用范围：
LED防爆平台灯主要适用范围：LED防爆平台灯适用于钻井平台、海上石油平台、炼油厂、化工厂、油站油库、隧道、船舶等易燃易爆场所及造船等行业使用。
Scope of application
LED platform lamp main applicable range: LED platform lamp suitable for drilling platform, offshore oil platform, oil refineries, chemical plants, oil depot, tunnel, ships and other inflammable and explosive places and shipbuilding industries.
基本技术参数 ：Specification
|
型号规格
Model specification
|
额定电压
Rated voltage（V）
|
功率
Power（W）
|
防爆标志
Explosion proof marks
|
防腐等级
Anticorrosion grade
|
防护等级
Protection grade
|
进线电缆外径
The cable outer diameter
|
出线口螺纹
Outlet thread
|
|
LD-PT040/G
|
AC85-265V
|
40W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT060/G
|
AC85-265V
|
60W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT080/G
|
AC85-265V
|
80W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|

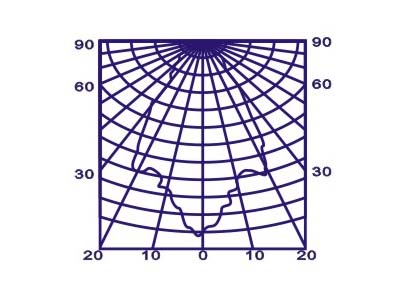

配光曲线：Light distribution curve:

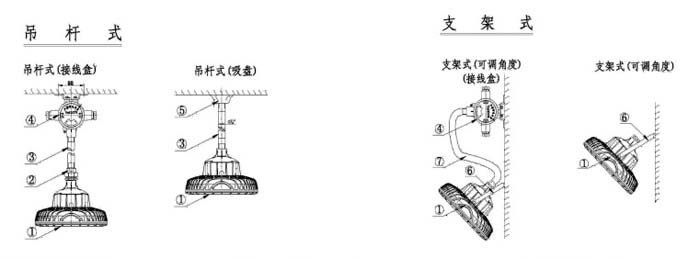

安装方法：Installation methods:
