LED防爆平台灯
LED platform lamp
适用范围：
适用于易燃易爆场所安全工作，用于各种室内、外工作场所。中国煤炭行业、中石油、中石化、中海油、电力、冶金、铁路、钢铁、船舶、部队、航空航天、公安消防、化工、政府部门及大型企业固定照明的使用需要。
Scope of application：
Suitable for the inflammable and explosive places safety work, used in various indoor and outdoor work places. China coal industry, in the oil, Sinopec, CNOOC, electric power, metallurgy, railway, steel, shipbuilding, aerospace, military, public security fire control, chemical industry, government departments and large enterprises need to use fixed lighting
基本技术参数 ：Specification
|
型号规格
Model specification
|
额定电压
Rated voltage（V）
|
功率
Power（W）
|
防爆标志
Explosion proof marks
|
防腐等级
Anticorrosion grade
|
防护等级
Protection grade
|
进线电缆外径
The cable outer diameter
|
出线口螺纹
Outlet thread
|
|
LDRG11
|
AC85-265V
|
10
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|

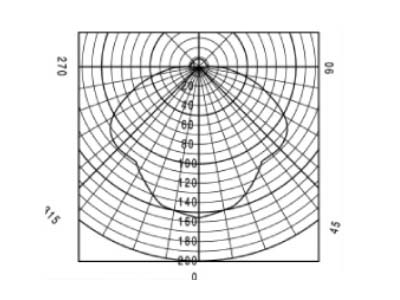

配光曲线：Light distribution curve:

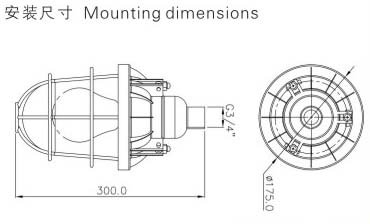

外形尺寸及安装方式：Outline dimensions and mounting method:
