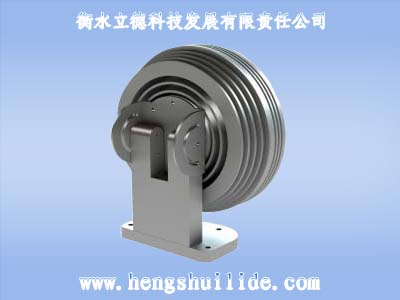

LED防爆泛光灯
LED explosion-proof floodlights
适用范围：
LED防爆投光灯主要适用于爆炸气体环境中1区或2区，为ⅡA，ⅡB，ⅡC类T6组及以下级别，组别的爆炸性危险场所，在交流电压220V的电路中，作为照明之用
Scope of application
LED light projection lamp is mainly used in explosive gas environment in zone 1 or zone 2, for A B, II, II class C T6 group level and below， group explosive dangerous places， in AC voltage 220V circuits, as for lighting
基本技术参数 ：
|
型号规格
Model specification
|
额定电压
Rated voltage（V）
|
功率
Power（W）
|
防爆标志
Explosion proof marks
|
防腐等级
Anticorrosion grade
|
防护等级
Protection grade
|
进线电缆外径
The cable outer diameter
|
出线口螺纹
Outlet thread
|
|
LD-F060/G
|
AC85-265V
|
60W
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
|
LD-F120/G
|
AC85-265V
|
120W
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
|
LD-F180/G
|
AC85-265V
|
180W
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
产品特色 1.外壳采用1050产品特色
1.外壳采用1050纯铝，车床加工，表面氧化喷砂，强度高、并具有较强的防腐能力。
2.整体采用密封结构，具有较强的防水防尘能力。
3.表面经过特殊的银油工艺处理、能在粉尘较多的场所使用。
1.Shell is made of 1050 pure aluminum, lathe processing, surface oxidation sandblasting, high strength, and has strong anti-corrosion ability.
2.Whole sealed structure, has good waterproof and dustproof performance.
3.After a special surface treatment process, the oil of silver in the dust more places

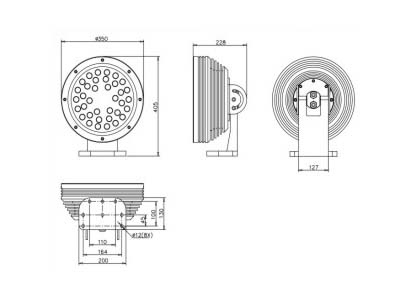

安装尺寸 Mounting dimensions

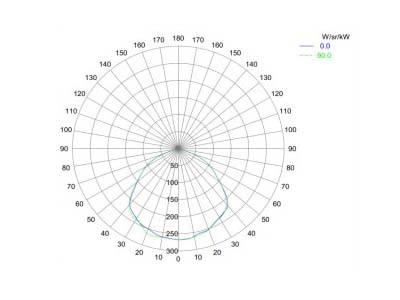

配光曲线： Light distribution curve:
