LED防爆投光灯
LED light projection lamp
适用范围：
LED防爆投光灯主要适用于爆炸气体环境中1区或2区，为ⅡA,ⅡB，ⅡC类T6组及以下级别，组别的爆炸性危险场所，在交流电压220V的电路中，作为照明之用。
Scope of application：
LED light projection lamp is mainly used in explosive gas environment in zone 1 or zone 2, for A B, II, II class C T6 group level and below, group explosive dangerous places, in AC voltage 220V circuits, as for lighting.
基本技术参数：Specification
|
型号规格
Model specification
|
输入电压
Rated voltage（V）
|
功率
Power（W）
|
防爆标志
Explosion proof marks
|
防腐等级
Anticorrosion grade
|
防护等级
Protection grade
|
进线电缆外径
The cable outer diameter
|
出线口螺纹
Outlet thread
|
|
LD-PT0360/G
|
AC85-265V
|
60W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT120/G
|
AC85-265V
|
120W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT180/G
|
AC85-265V
|
180W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|

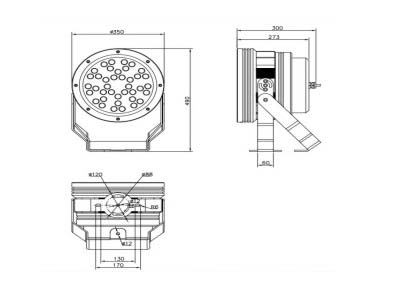

外观尺寸及安装方式

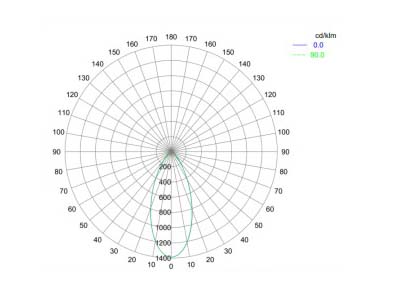

配光曲线：Light distribution curve:
产品特点：
1.选用国际上最先进的LED光源及电源稳压系统；
2.省电节能、使用寿命长
3.交直流两用
4.照射距离100-150米左右
5.外壳采用1050纯铝，车床加工，表面氧化喷砂，强度高、并具有较强的防腐能力、安全，环保，免维护
Features：
1.Selection of the most advanced LED light source and power supply system;
2.Energy saving, long service life
3.AC-DC dual-electricity
4.Irradiation distance 100-150 meters
5.Shell is made of 1050 pure aluminum, lathe processing, surface oxidation sandblasting, high strength, and has strong anti-corrosion ability, safety, environmental protection, maintenance free
