LED泛光灯
作者: admin 发布日期: 2013-4-20 11:10:41

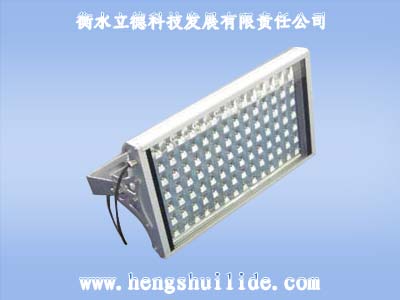

LED泛光灯
LED Floodlight

适用范围:
   景观照明、舞台照明、建筑物照明、广告牌照明、绿化景观照明、酒店、隧道照明、文化灯专门设施照明。可满足特殊角度照明需要,连接式信号接头,接通电源即可亮灯,无需任何其他配件。

Scope of application:

Landscape lighting, stage lighting, building lighting, advertising lighting, landscape lighting, tunnel lighting, hotel, cultural specialized facilities lighting lamp. It can meet the special need of illumination angle, connection type signal connector, connect the power to lighting, without any other accessories.

● 产品特色:
1. 节能:比传统钠灯管节能30%以上
2. 寿命长:LED投光灯正常使用寿命为5万小时以上
3. 无闪烁:LED采用恒流驱动,启动快,无闪烁,保护眼睛
4. 绿色环保:LED投光灯无紫外线辐射,不含汞等有毒物质
5. 高效角度反光板:专用角度反光板,能将LED发出的光线,更有效反射到地面


The product characteristics:
1 energy saving than the traditional sodium lamp energy saving more than 30%
2 long life: LED cast light normal service life of 50000 hours or more
3 no flicker: LED constant current drive, fast starting, no flashing, eye protection
4 green environmental protection: LED cast light lamps without ultraviolet radiation, mercury and other toxic substances
5 efficient angle reflector: special angle reflector, can LED emits light, more effective reflection to the ground

基本技术参数 : Specification

型号规格
Model specification

输入电压
Rated voltage(V)

功率
Power(W)

防腐等级
Anticorrosion grade

防护等级
Protection grade

进线电缆外径
The cable outer diameter

出线口螺纹
Outlet thread

LD-F060

AC85-265V

60W

WF2

IP65

Φ8-Φ15

G3/4

LD-F120

AC85-265V

120W

WF2

IP65

Φ8-Φ15

G3/4

LD-F180

AC85-265V

180W

WF2

IP65

Φ8-Φ15

G3/4

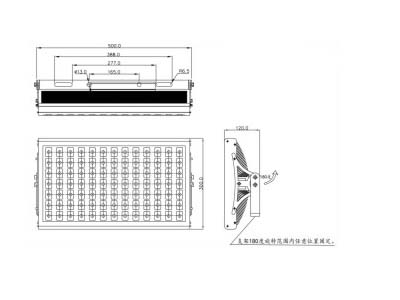

安装尺寸  Mounting dimensions

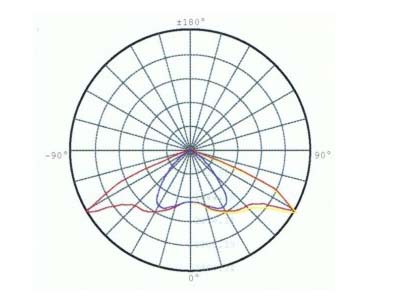

配光曲线:  Light distribution curve:
